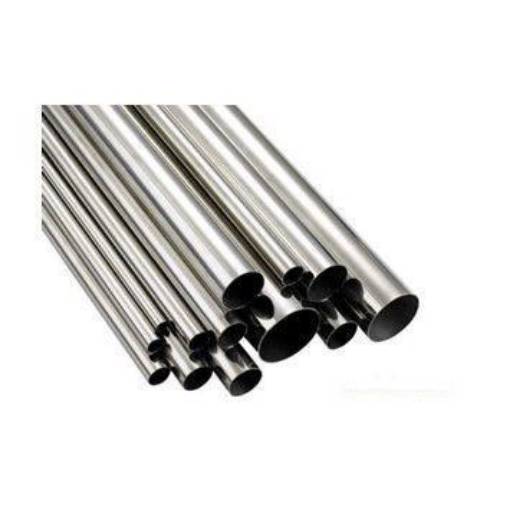

1 1/4" Stainless 316 Sch40 Welded Tube

Metric Tube

Grades are available in:

• BSEN 1.4307 (304L)
• BSEN 1.4404 (316L)

Advantages

• This ID based system brings many advantages including:
• Light weight
• Systems flexibility including ease of alteration
• Fast welding times
• Low consumables usage
• Attractive appearance
• Clean/hygienic/high-tech image
• Low environmental impact
• Recyclability
• Simple fabrication and erection
• Good mechanical properties
• Good ductility
• Low maintenance
• Long service life
• Smooth surface with no coatings or linings

Specifications

• Dimensional tolerances to EN/ISO 1127
• Outside Diameter (Class D3): ±0.75% / minimum ±0.3mm
• Outside Diameter for tubes 168.3mm O/D & above (Class D2): ±1.0% / minimum ±0.5mm
• Wall Thickness (Class T3): ±10% / minimum ±0.15mm
• Lengths: 6 metre with plain ends.

Ornamental Tube

Decorative stainless steel tubing in 304 and 304L. Part of the austenitic family of stainless steel, both 304 and 304L stainless ornamental tubing contain chromium, nickel and carbon, providing its unique qualities of corrosion resistance, durability in low temperatures, ease of fabrication, as well as attractive appearance. Alloys 304/304L stainless steel are reliable sources for general purpose use and present good long term value.
