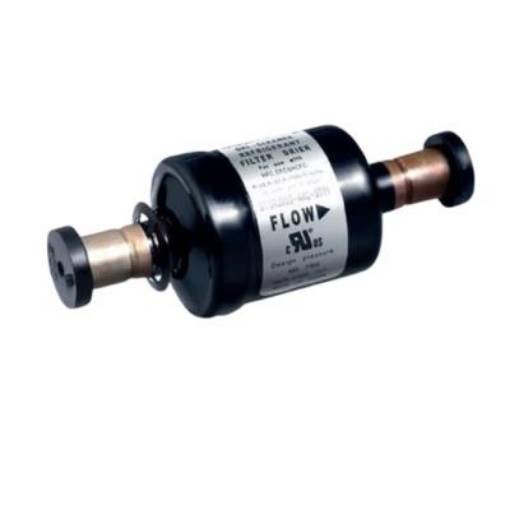

Filter Drier Uniflow DTGB415 5/8'' Flare

Sanhua DTGB306 UniFlow Filter Drier – Flare Type

High-Capacity Filtration for Demanding Refrigeration Systems

The DTGB306 Filter Drier from Sanhua is a high-capacity, unidirectional filter drier designed for liquid line protection in refrigeration and air-conditioning systems. With reliable flare-type connections, it offers fast installation and superior contaminant control in both commercial and residential applications.

Key Features:

• Solid-Core Construction – Withstands system vibration and pressure changes
• High Moisture & Acid Removal – Uses a hybrid desiccant blend for superior drying and filtration
• Fine Filtration – 20 µm rating effectively removes sludge, particles, and residues
• Rugged Exterior – Durable powder-coated finish resists corrosion (500+ hour salt spray tested)

Performance & Compatibility:

• Refrigerants Supported: Compatible with HCFC, HFC, HFO, and Hydrocarbons (R22, R134a, R404A, R407C, R290, R1234yf, etc.)
• Temperature Range: –30 °C to +120 °C
• Max Operating Pressure: 48.3 bar (700 psi)

Installation Highlights:

• Flare Connections – Quick and serviceable fittings, ideal for systems requiring easy maintenance
• Unidirectional Flow – Ensure correct orientation using the flow arrow on the drier
• Liquid Line Use – For maximum system protection and efficiency

Certifications:

• Meets international standards: UL, CSA, and PED

High Capacity. Trusted Performance.

Trust the Sanhua DTGB306 Flare Filter Drier to safeguard your refrigeration system with robust filtration, quick installation, and long-lasting reliability.
