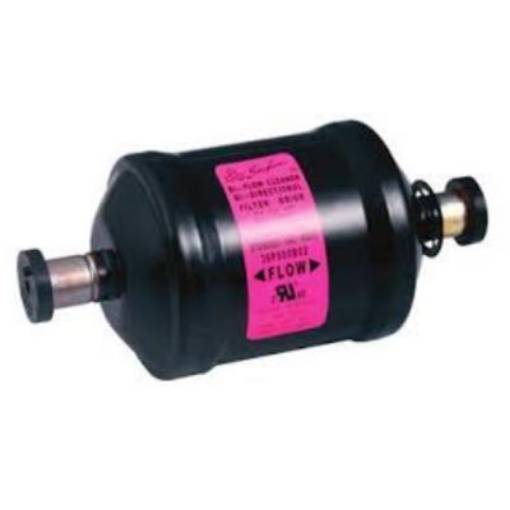

Filter Drier Uniflow DTGF054s 1/2'' Solder

Sanhua DTGF053s UniFlow Filter Drier – Solder Type

Reliable Filtration. Lasting Protection.

The DTGF053s Filter Drier from Sanhua is engineered for unidirectional flow refrigeration systems, providing superior protection against moisture, acids, and solid contaminants. Ideal for liquid line applications, this solder-type model ensures high-performance operation and long-term system reliability.

Key Features:

• Solid-Core Design – Ensures structural durability and consistent performance
• Hybrid Desiccant – Effective removal of moisture and acid for extended component life
• 20 µm Filtration – Captures fine particles and system debris
• Corrosion-Resistant Finish – Tested to withstand 500+ hours of salt spray exposure

Performance & Compatibility:

• Refrigerants Supported: HCFCs, HFCs, HFOs, and Hydrocarbons (e.g., R134a, R404A, R290, R1234ze)
• Temperature Range: –30 °C to +120 °C
• Max Operating Pressure: 48.3 bar (700 psi)

Installation Highlights:

• Solder Connections – Secure and leak-resistant integration
• Flow Direction – Must follow arrow marked on the unit
• Liquid Line Placement – For optimal efficiency and system protection

Certifications:

Compliant with UL, CSA, and PED standards

Protect Your System with Confidence.

Choose Sanhua DTGF053s Solder Filter Drier for dependable filtration, moisture control, and long-term refrigeration performance.
