Lowara Ecocirc XL Plus 25-100

Lowara Ecocirc circulation pumps are designed for water circulation in heating, air conditioning and domestic hot water systems. With 14 models and multiple control modes, the new Ecocirc range offers a smarter choice in the residential circulators market by combining high efficiency, simplicity and reliability in a single cost effective package. Compact and easy to install, all models feature a unique 'one turn' knob to set up control modes and speed settings. An interchangeable plug connection, automatic air-purge and a multicolor LED come as standard. The full Ecocirc range reaches an EEI level 0.18.

This pump is suitable for the following applications:

• Refurbishment or extension of existing systems
• Facilities fitted with thermostatic valves
• Single-family houses or apartment buildings
• Underfloor heating systems

Efficiency

• Best-in-class energy efficiency (EEI 0.18)
• ECM motor for intelligent speed control
• Up to 80% lower power consumption
• Optimized hydraulics

Simplicity

• Multifunctional 'one turn' knob
• Compact and easy to install

Reliability

• Robust proven design
• Dry-run protection
• Warnings and alarms visualization

Economy

• Insulation shell as standard

ECOCIRC PRODUCT FEATURES

• High efficiency pumps with ECM-technology and permanent magnet rotor
• Low power consumption
• EEI 0.18
• Control modes: Proportional Pressure, Constant Pressure, Constand Speed
• Automatic 'air purge'
• Removable Plug Connection
• Insulation Shell

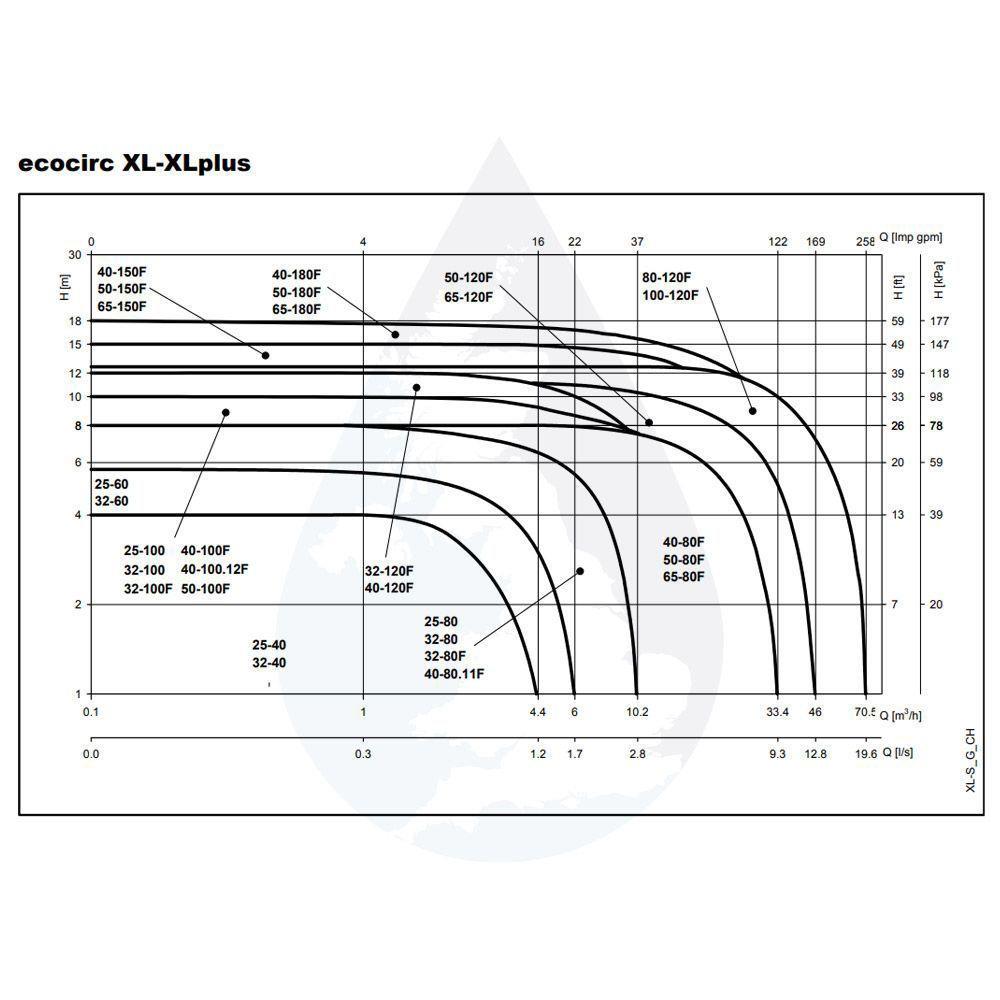

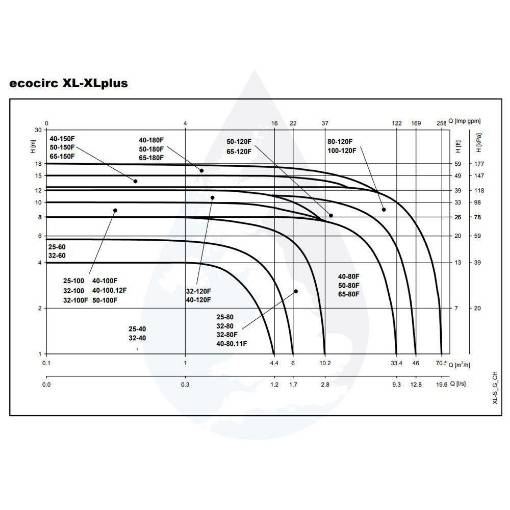

• Flow rate: up to 4.5m 3/h (depending on model, see performance graph)
• Head: up to 8m (depending on model, see performance graph)
