Lowara TLCN 25-6L

The TLCN 25-6L is a residential hot water secondary circulator for the circulation of sanitary water. The TLCN's motor is a manually set three speed wet motor.

Pump

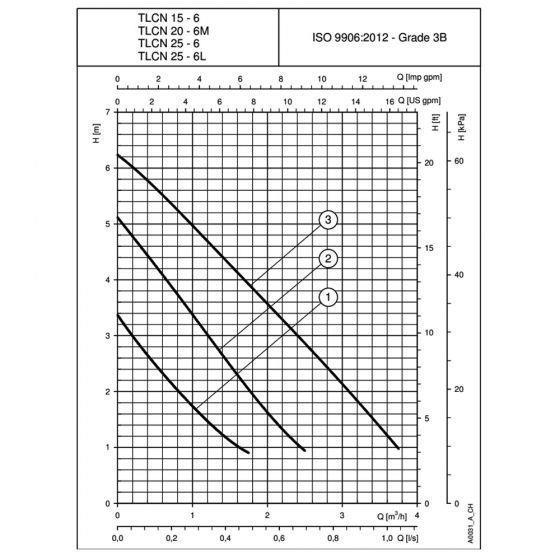

• Flow rate: up to 4 m3/h.
• Head: up to 6 m.
• Temperature of pumped liquid: +2°C ÷ +110°C (recommended up to 65°C). Avoid condensation and ice formation.
• Maximum operating pressure: 10 bar (PN 10).
• Impeller: made of composite material.
• Wear ring: ceramic.

Motor

• Wet rotor type, with bearings lubricated by the pumped liquid.
• Axial and radial bearings made of ceramic.
• Single-phase 230 V 50 Hz power supply.
• Terminal box axially integrated in the motor.
• Three speed hand selector motor.
• Insulation class 180 (H).
• Protection class IP 44.

Materials

• Pump Body - Stainless steel
• Impeller - Composite material
• Shaft - Ceramic
• Inner Jacket - Stainless steel
• Wear Ring - Ceramic
• Bearings - Ceramic
• Gaskets - EPDM

TLC : Series name

• N : Stainless steel version
• 25 : Port nominal diameter
• 6 : Maximum head in m.
• L : Port to port distance 180mm

Weight: 3.1kg
